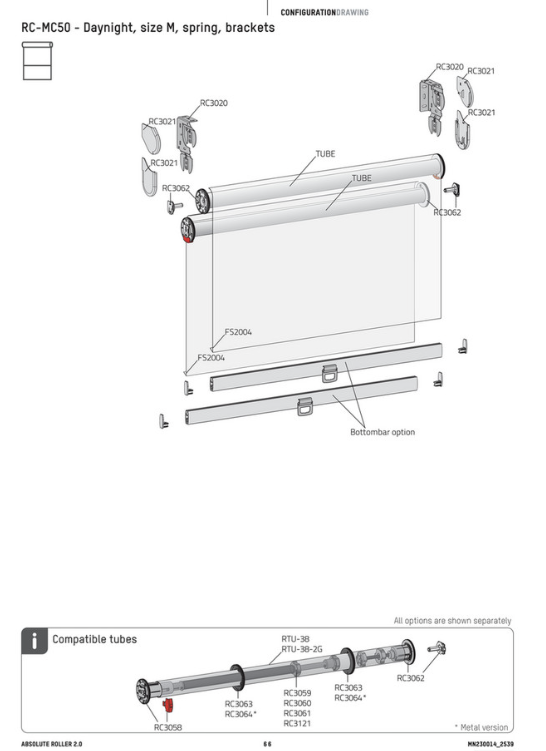

DAY NIGHT Configuration schematic.png
DAY NIGHT Configuration schematic.png

UNASSEMBLED DAY-NIGHT Coulisse Cordless Spring Roller 2.0 Headrail System

$129.00

AS SHOWN AT CWC25, this cordless spring roller system is child-safe by design and can be mounted on a 2.5" wood board. It allows two independent shades to be mounted on the same board. For full coverage of the bracket set a 3.5” wide board is required. Four spring sizes give you options to pick the correct tension based on your fabrics and shade size. Smooth operation and quick tension adjustments make this cordless system the one to choose. Clips, 1.5” (38mm) tube, weight bar and mounting board not included.

Package:

AS SHOWN AT CWC25, this cordless spring roller system is child-safe by design and can be mounted on a 2.5" wood board. It allows two independent shades to be mounted on the same board. For full coverage of the bracket set a 3.5” wide board is required. Four spring sizes give you options to pick the correct tension based on your fabrics and shade size. Smooth operation and quick tension adjustments make this cordless system the one to choose. Clips, 1.5” (38mm) tube, weight bar and mounting board not included.

Metal Clip, 1.5" (ea)
Metal Clip, 1.5" (ea)
$4.50
Center Support/Splice for 1.5" Tubing
Center Support/Splice for 1.5" Tubing
$22.00

Details, Assembly & Mounting Instructions

Unassembled Kit Contents

  • Spring, x2

  • Spring control unit, x2

  • Stopper with idle pin, x2

  • Brackets, 1 DAY-NIGHT Set

  • End/cover caps, 1 DAY-Night Set

  • If desired, ORDER clips SEPARATELY

Size Options

  • Extra Small spring minimum tube width 21.25” (or board 22.75”) and max weight 1.5 lbs

  • Small spring min tube width 27.5” and max weight 2.2 lbs

  • Med spring min width 34” and max weight 4.5 lbs

  • Large spring min width 38” and max weight 8.25 lbs

All parts are available separately.

Complete Assembly Manual
Mounting and Stringing Instructions

Part 1

Part 2

Part 3
